CONTAINER LEVELING CHASSIS TRAILER

ContainGo® Container
Leveling Chassis Trailer
Transport & level 20' containers, weighing up to 20,000 pounds

A self-leveling container trailer, ideal for solo operators, made in the U.S.A.

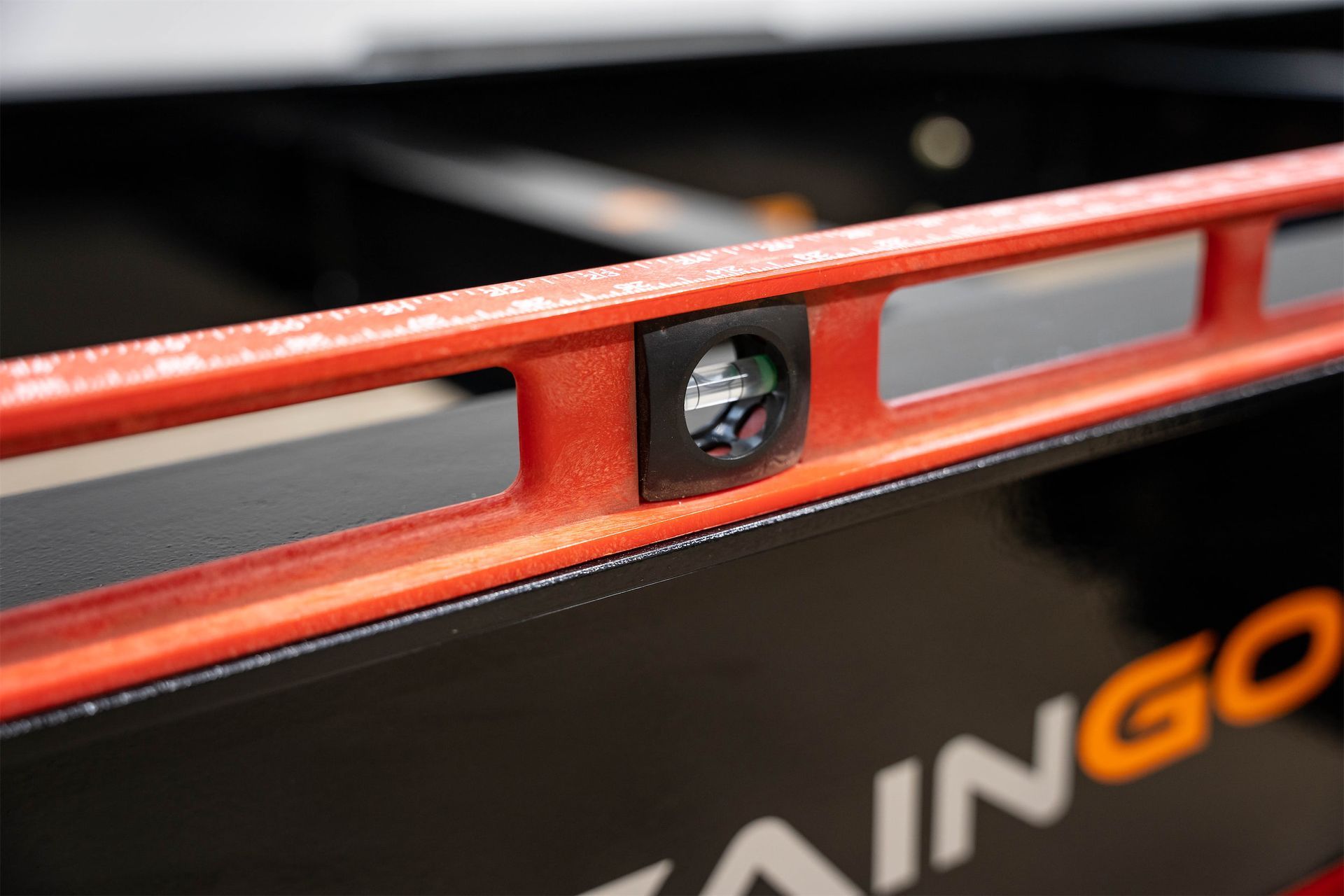

  • a red level is sitting on the container leveling chassis trailer

    Slide title

    Write your caption here
    Button

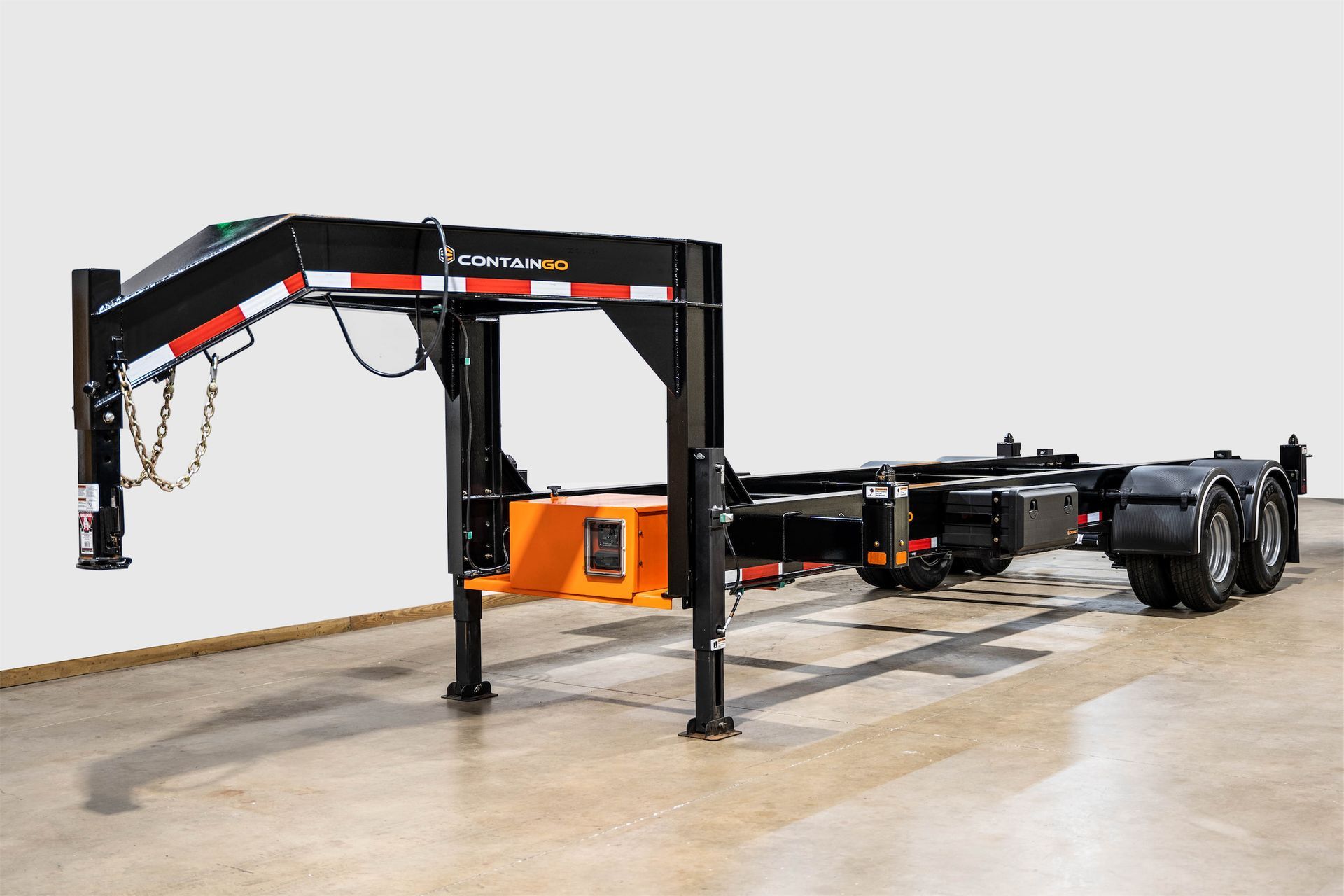

  • Side view of the ContainGo Container Leveling Chassis Trailer.

    Slide title

    Top view of the ContainGo Container Leveling Chassis Trailer.

    Button

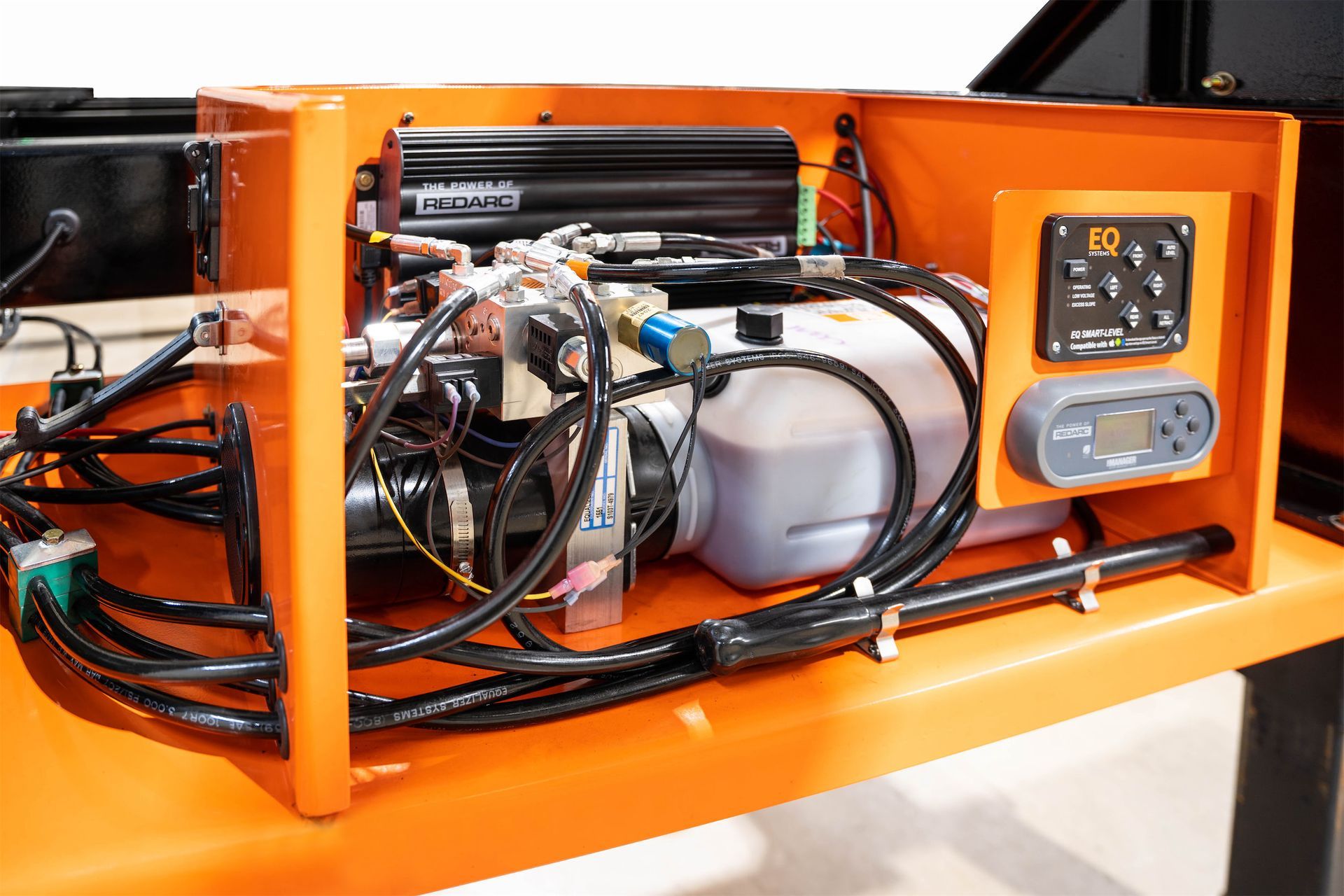

  • a close up of the hydraulics of the Container Leveling Chassis Trailer

    Slide title

    Write your caption here
    Button

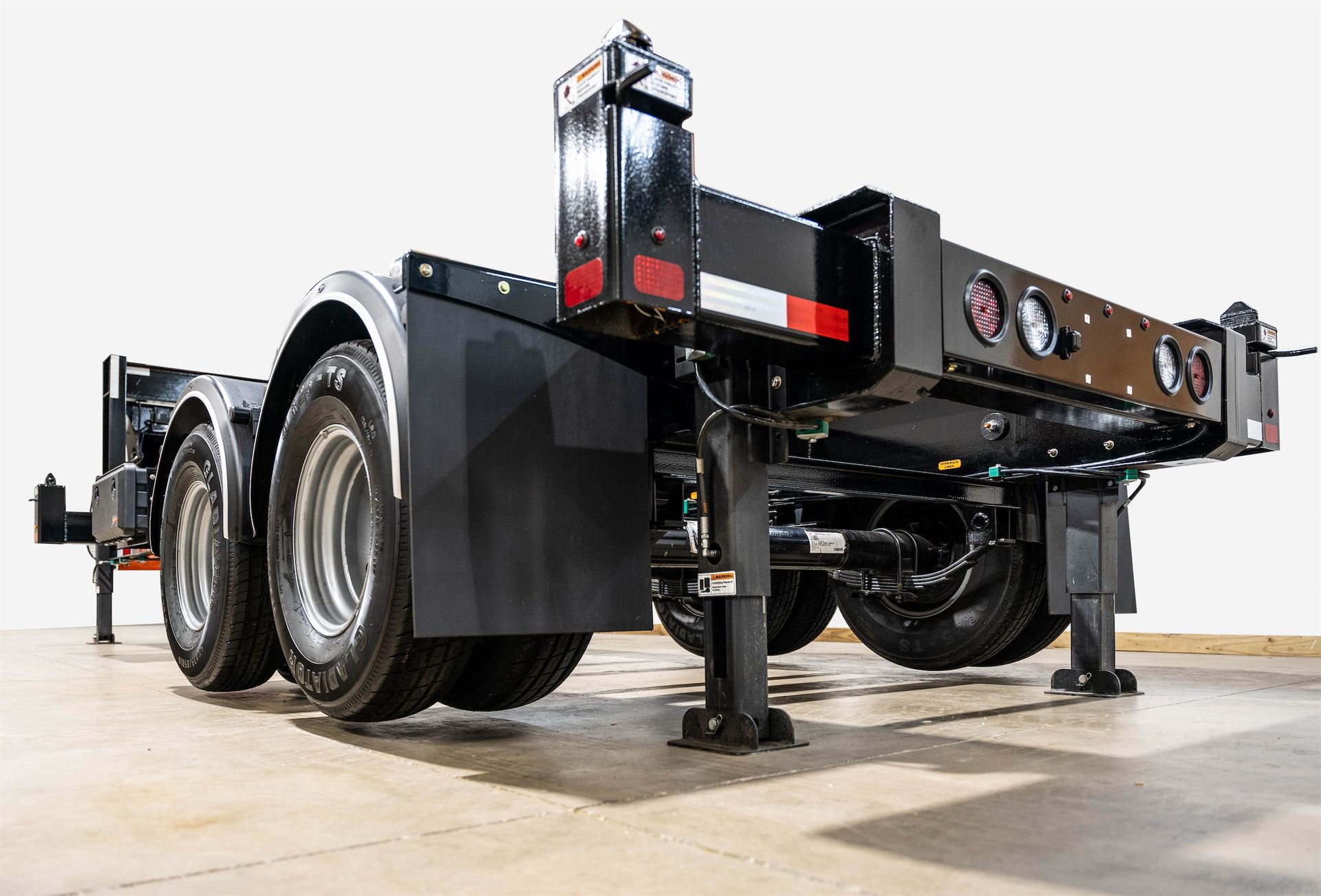

  • a Container Leveling Chassis Trailer is sitting on top of a warehouse floor .

    Slide title

    Write your caption here
    Button

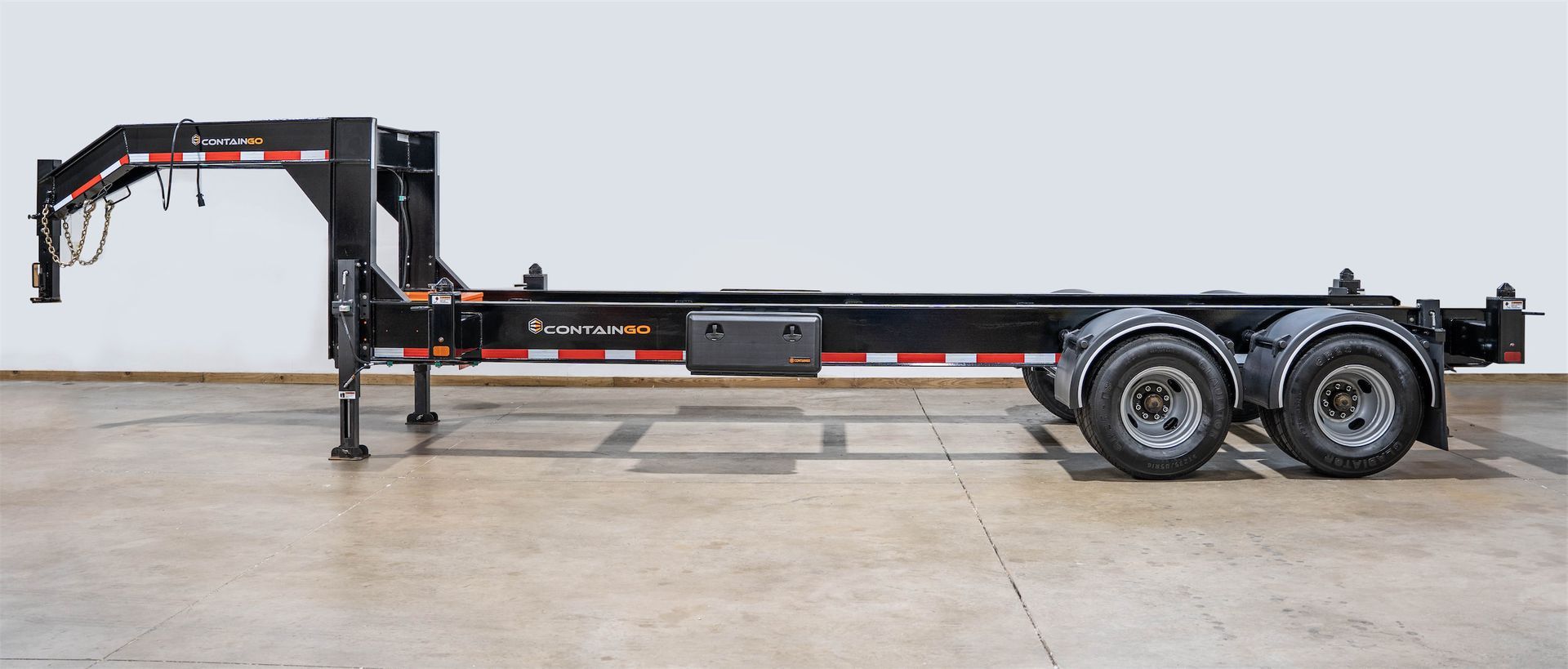

  • a Container Leveling Chassis Trailer is sitting on top of a concrete floor .

    Slide title

    Write your caption here
    Button

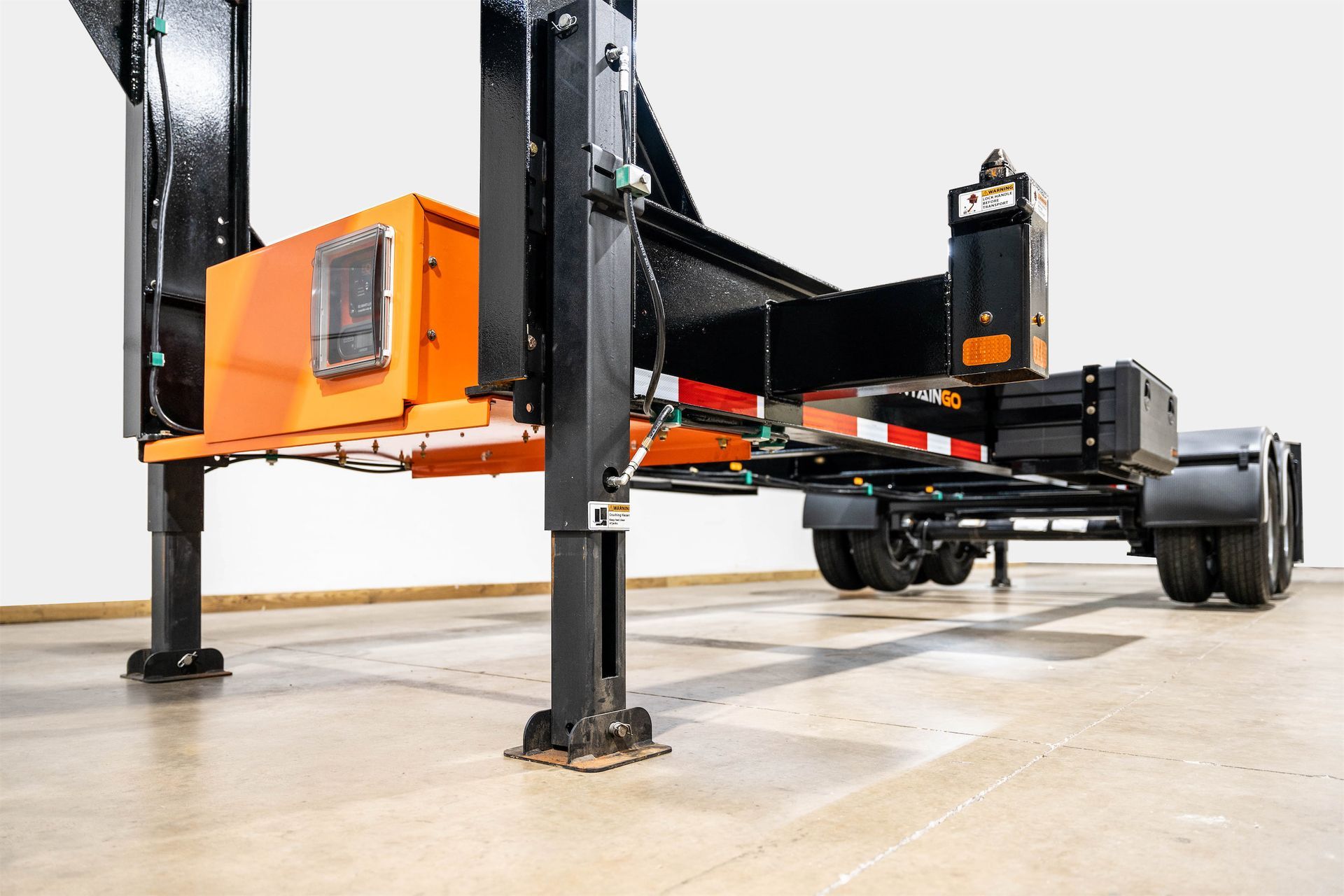

  • a Container Leveling Chassis Trailer is sitting on a concrete floor in a warehouse .

    Slide title

    Write your caption here
    Button

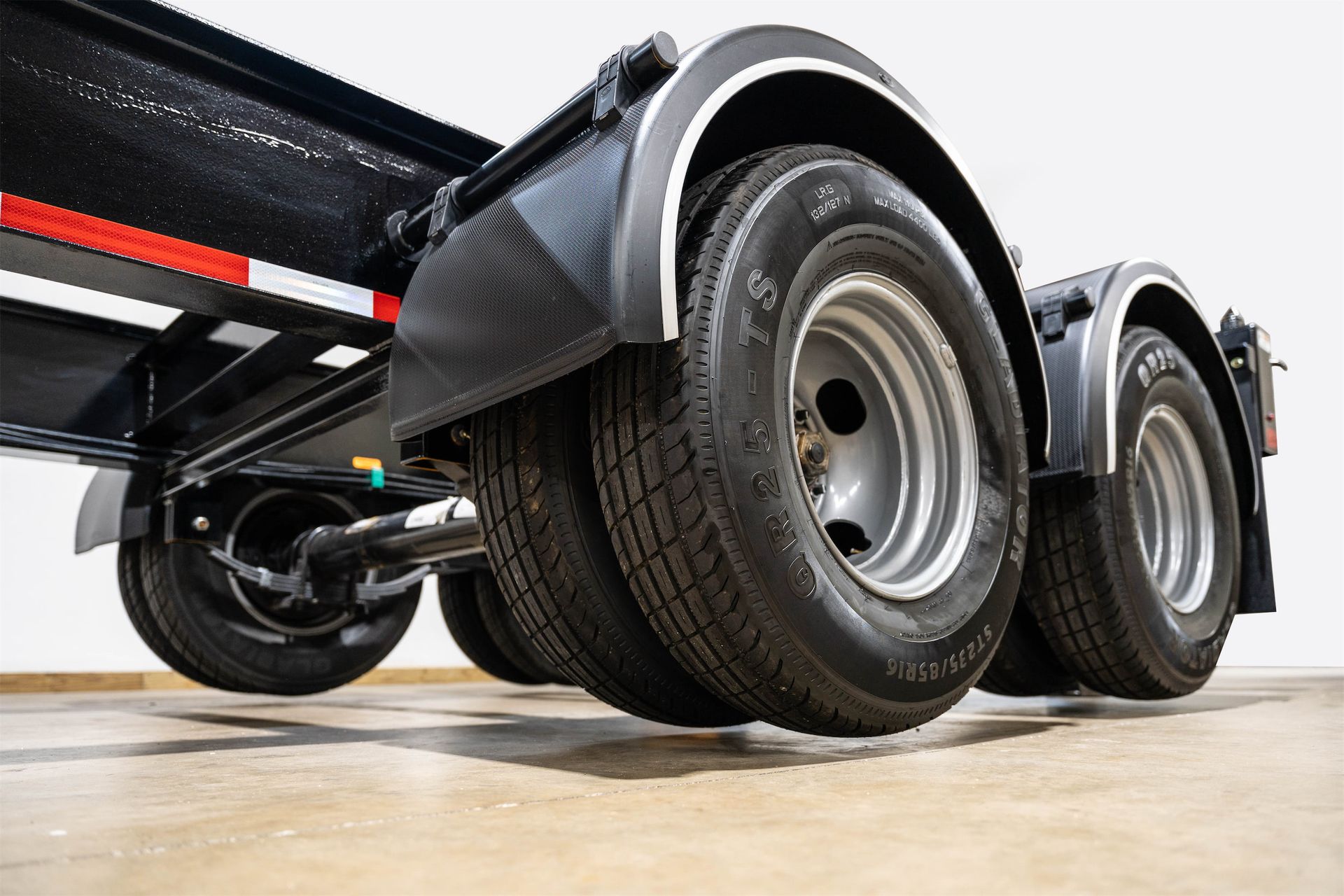

  • Side view of the ContainGo Container Leveling Chassis Trailer

    Slide title

    Side view rendering of the ContainGo Container Leveling Chassis Trailer

    Button

The ContainGo Leveling Chassis Trailer not only transports 20' containers weighing up to 20,000 pounds, but also levels the containers while they are on the trailer in the field.


Once the trailer is parked, a single operator can level the trailer with the touch of a button or using a mobile app. Even on uneven terrain, containers can be worked in or out of while remaining level on the trailer.


Containers can be loaded on and off the trailer with a crane or large forklift.


More and more innovative companies are finding new ways to use 20-foot shipping containers; customized to house high-tech and high-value systems used in a variety of industries.


Is the ContainGo Leveling Chassis Trailer the right tool to transport and level your custom container?

LEARN MORE

CONTAINGO CONTAINER LEVELING CHASSIS TRAILER FEATURES

  • Four independent hydraulic leveling jacks with an automated self-leveling feature
  • Electric over hydraulic power unit
  • AC and DC battery charging system
  • Gooseneck
  • Tandem dual wheel
  • 10,000 lb. axles
  • 14"x 22 lb. I-Beam frame rails


  • 8 Lug 16x6 steel wheels
  • 235/85/R16 load range G tires
  • Electric drum brakes
  • Breakaway safety system
  • Four container stands with twist locks
  • Fenders and mud flaps
  • Two side-mount toolboxes
  • Made in the U.S.A.

Tech specs:

  • GVWR: 25,000 lbs
  • Overall Height: 78"
  • Overall Length: 30'
  • Overall Width: 102"
  • Weight: 5000 lbs


Related Products

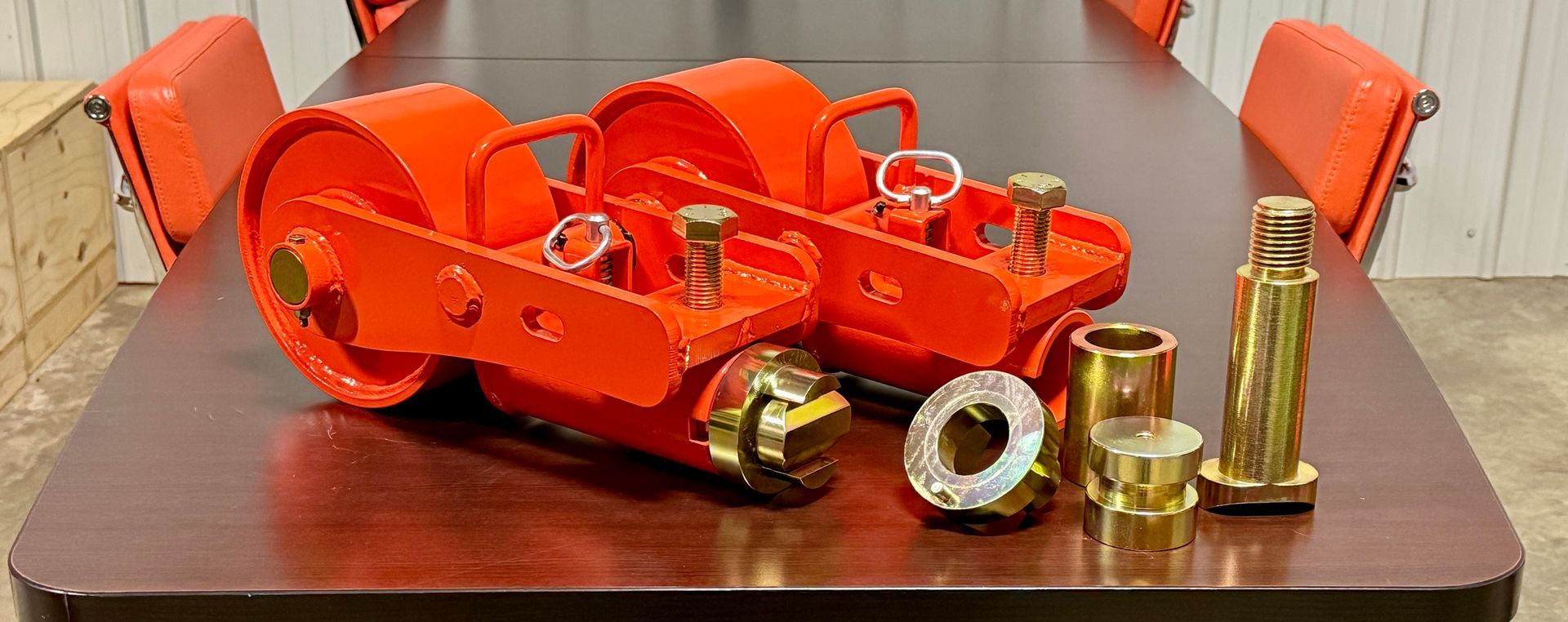

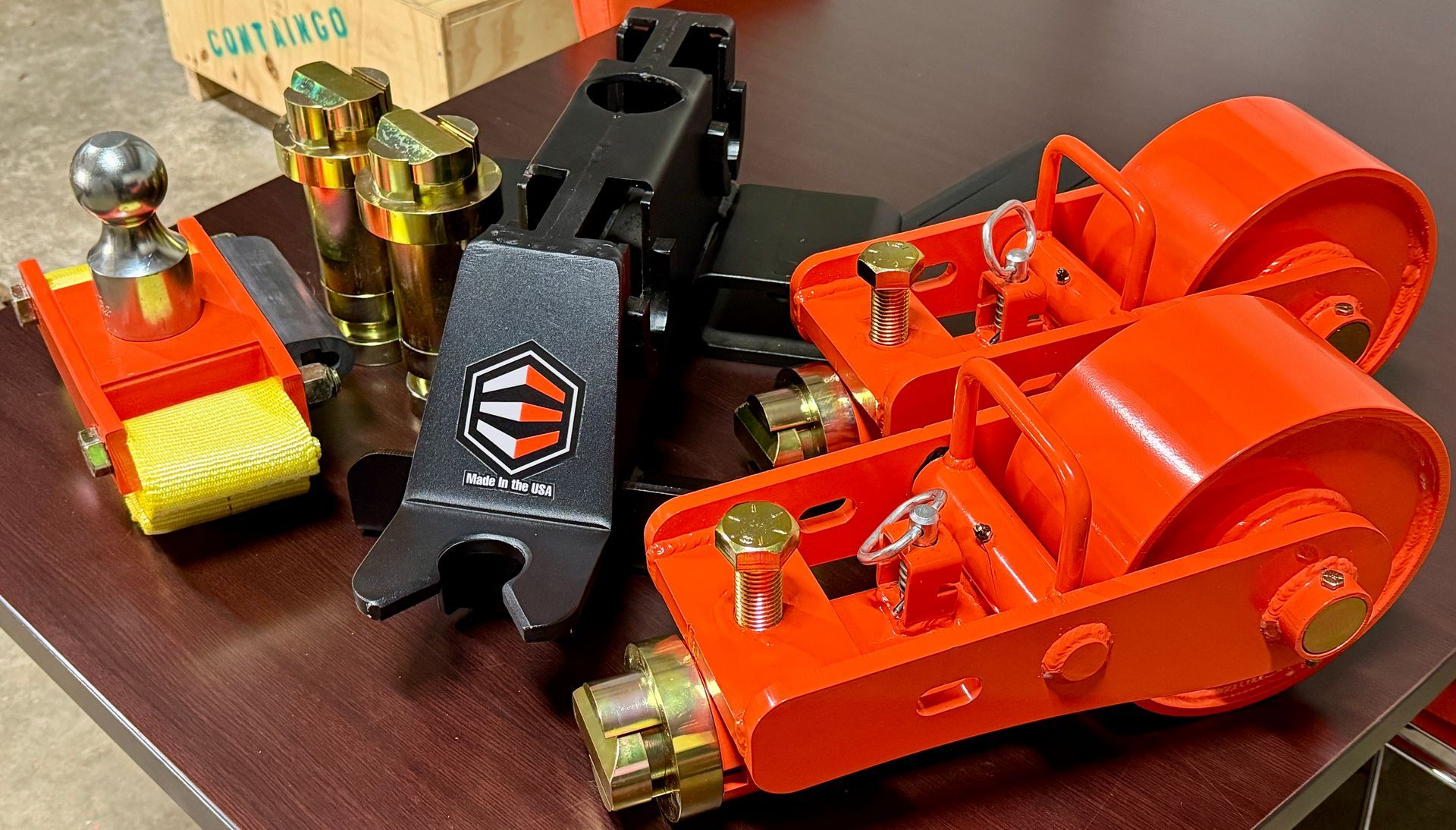

  • the individual parts of the container relocation kit are displayed sitting on a floor
